1. Product use description: The new marshalling, unmarshalling and cleaning machine is one of the necessary equipment for manufacturing prebaked anodes. In the roasting workshop, the roasted carbon blocks are divided into pieces and the surface is cleaned to improve work efficiency and reduce Environmental pollution, reducing labor intensity of workers (avoiding workers’ burns, crushing injuries, silicosis and other industrial injury risks), due to market demand, there are more and more types of carbon blocks in carbon plants, which brings great difficulties to the cleaning of carbon blocks. Using the principle of connecting rods, our company has successfully developed a unit that can adapt to various specifications of carbon blocks.

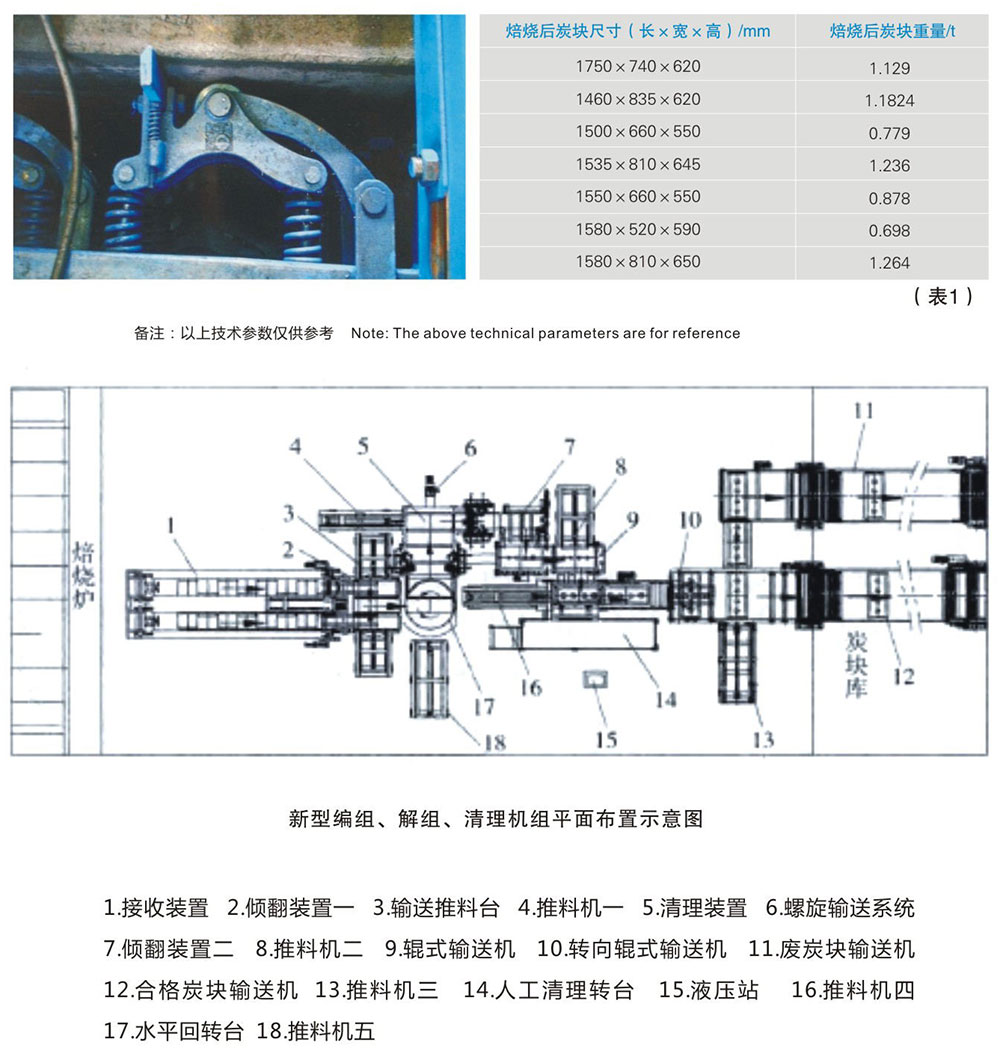

2. Product requirements: The new grouping, ungrouping, and cleaning machine unit requires functions such as automatic block division, cleaning, transportation, and grouping of roasted carbon blocks (see Table 1)

3. Product composition, layout and process flow: the new marshalling, unmarshalling and cleaning machine is mainly composed of receiving device, tilting device, pushing material conveying table, horizontal rotary table, cleaning device, pushing material machine, cross steering conveyor, qualified carbon It is composed of block conveyor, waste block conveyor, manual cleaning turntable, hydraulic system and PLC electric control system.

4. Product core design: Our company’s products can effectively clean the surface of carbon blocks of various specifications. The core technology comes from the new scraping tool design and new tool layout. The scraping is simulated for the main structures such as the tool holder, the connecting rod mechanism, and the spring, and the calculation of the force and the improvement of the dust collection system achieve high scraping efficiency and cleaning quality, which fills the gap in this field.
